Hybrid Antenna

Hybrid Antenna

Hybrid Antenna Model: FBA-H2L6H1TG18

  • Frequency Range(MHz): (698-960), (1695-2170), (2490-2690)

  • VSWR: <1.5

  • Cross-Polar Isolation (dB): ≥25

  • Interband Isolation (dB): ≥25

  • PIM3 (2x43 dBm carrier) (dBc): <-150

  • Impedance (Ω): 50

  • Grounding: DC Ground

Download File (You must Authenticate to Download)

Hybrid Antenna Model: FBA-H2L6H1TG18

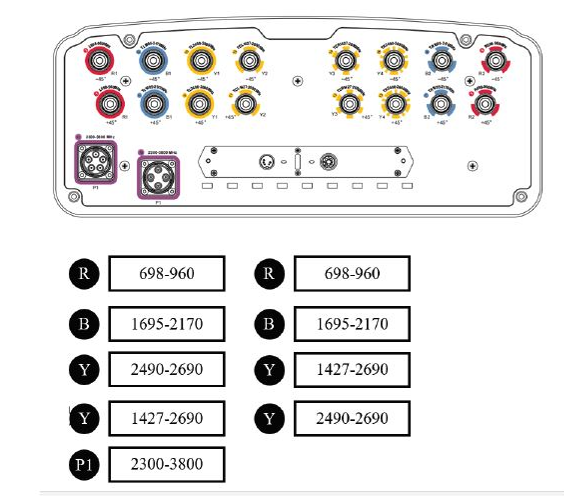

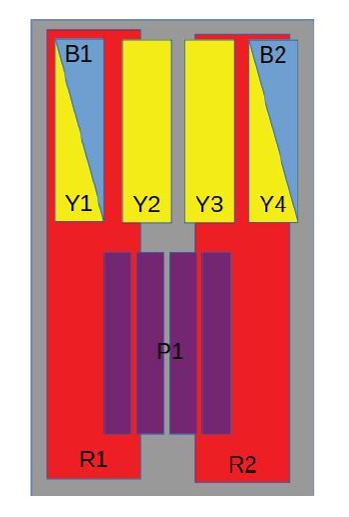

2X(698-960)-2X(1695-2170)-2X(2490-2690)-2X(1427-2690)-8T8R-2300-3800MHz/65/17dBi/2-12
