• Frequency range (MHz): 2300-2400 , 2496- 2690

• Polarization: +45 , -45

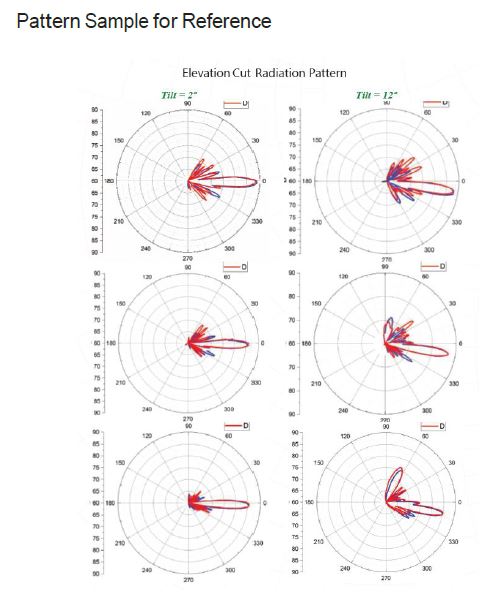

• Electrical down tilt (°): 2-12, con􀆟nuously adjustable

• Max. power per input (w): 60(at 50°C ambient temperature )

• Impedance (Ω): 50

• Grounding: DC Ground

• Max. amplitude tolerance from calibration port to input port (dB): 0.7

• Max. power per input (w): 60(at 50°C ambient temperature )
