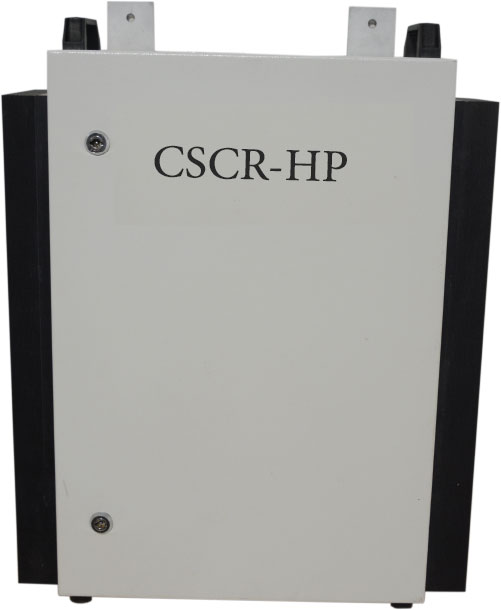

Dual Band High Power Digital Repeater

Dual Band High Power Digital Repeater

CSCR software-defined repeater is an intelligent solution for boosting and repeating of cellular signals.

  • Supports 900MHz and 1800MHz frequency bands
  • Bidirectional digital channel selection
  • 7 sub-band with tunable bandwidth from 200 kHz up to 20MHz
  • 43dBm linear output power at downlink
  • Automatic and manual gain control 60 dB to 90 dB in 1 dB steps
  • 20 dB of feedback interference canellation
  • Compact size, easy maintenance and installation (wall-mounted)
  • IP65 enclosure (dustproof, waterproof, and moistureproof)
  • Remote and local control and monitoring (RS232 or SMS)

Download File (You must Authenticate to Download)

CSCR software-defined repeater is an intelligent solution for boosting and repeating of cellular signals. Precise, sharp, and narrowband Digital filters, which is considered as the main advantage of the system for providing bidirectional repeating for single and multi-operator coverage for dual cellular bands (1800 & 900MHz). SDR-based processing provides users for bandwidth from 200kHz up to 20MHz with 7 Sub Band increments.
