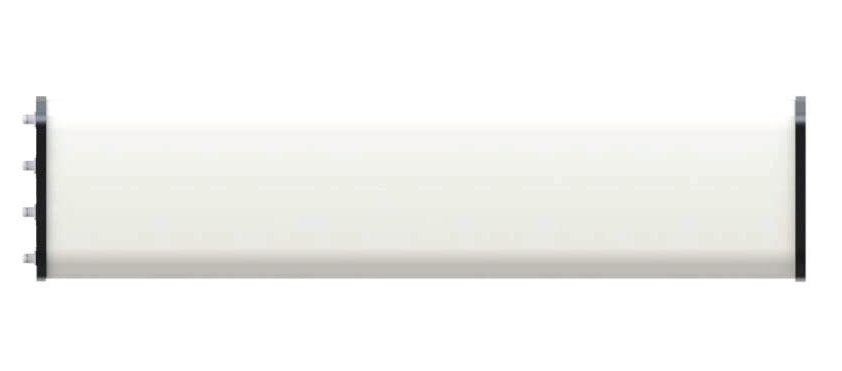

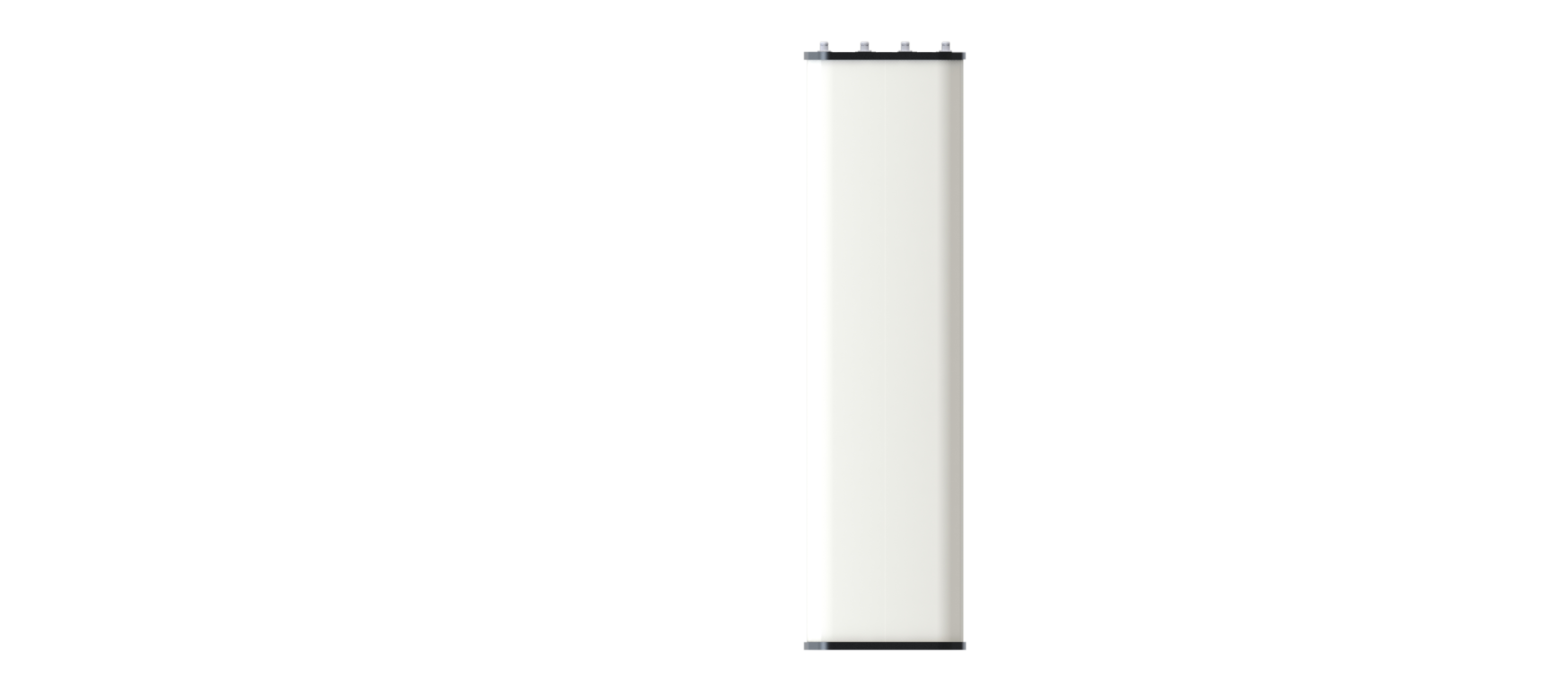

4T4R MIMO Antenna

The proposed antenna is a 4T4R MIMO antenna, consisting 24 wide-band, wide-beamwidth dual-polarized dipole antenna elements

Frequency Range (MHz): 2300-2700

Gain(dBi): 18

VSWR < 1.4-1

Cross-Polar Isolation (dB): >27

Interband Isolation (dB): >30

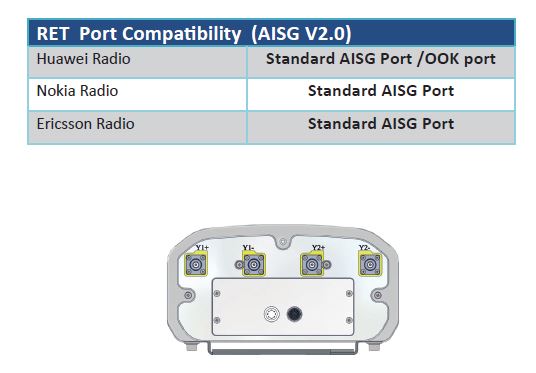

Flexible RET Technology

Download File (You must Authenticate to Download)

Description
Gallery

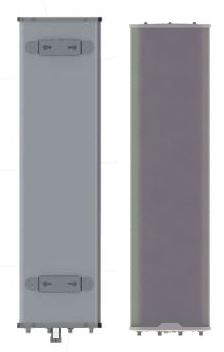

The proposed antenna is a 4T4R MIMO antenna, consisting 24 wide-band, wide-beamwidth dual-polarized dipole antenna elements, all contained within a single radome providing MIMO capability for high speed wireless access services including TD-LTE and FD-LTE.

The proposed antenna enables MIMO communication using an optimized structure with four coaxial output ports. Excellent isolation and low correlation between different streams of data, guaranteed by proper spacing of the columns (0.65λ), ensures optimum MIMO performance.
