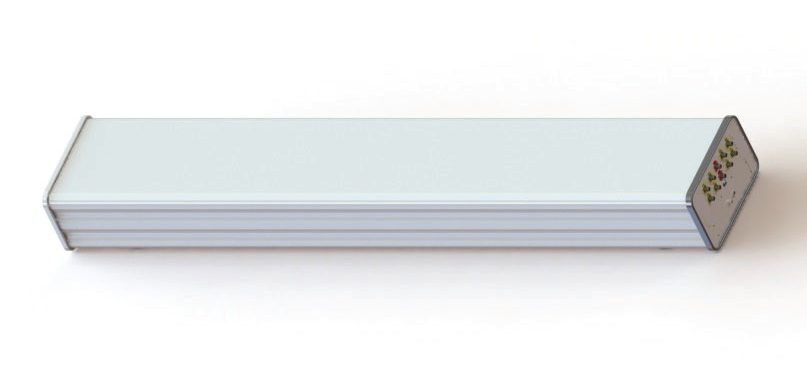

Penta Band Antenna

Penta Band Antenna

Elegant and domestic made design are the distinguishing features of FARAVID's antenna portfolio. FARAVID antennas are based on fully fledged engineering knowledge as well as decades of practical experience.

  • Frequency Range (MHz): (690-960),(1695-2690)

  • Gain (dBi): 16.2-17.2 (for different frequency bands)
  • VSWR: <1.5
  • Cross-Polar Isolation (dB): >27
  • Interband Isolation (dB): >30
  • Grounding: DC Ground

Download File (You must Authenticate to Download)

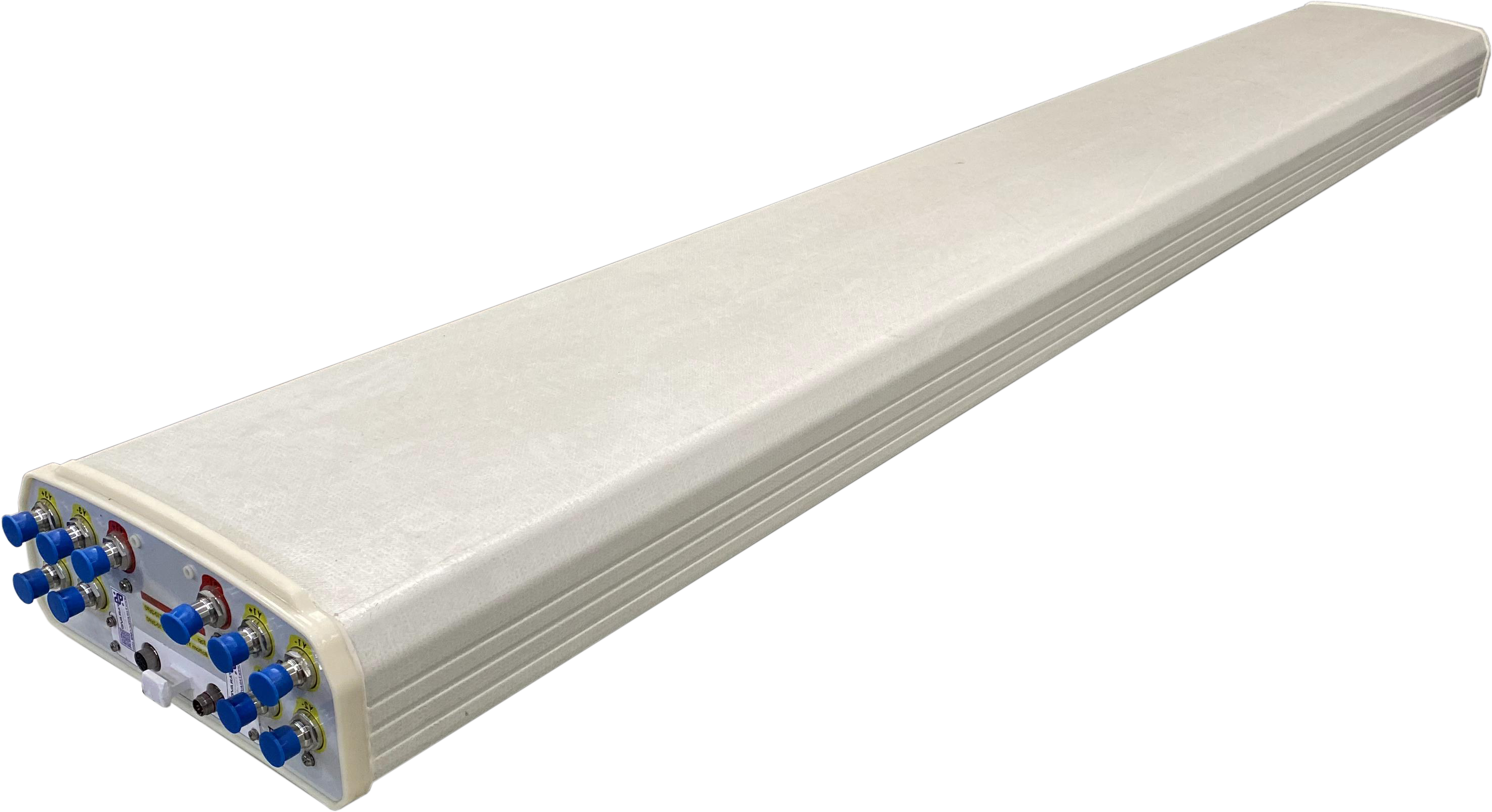

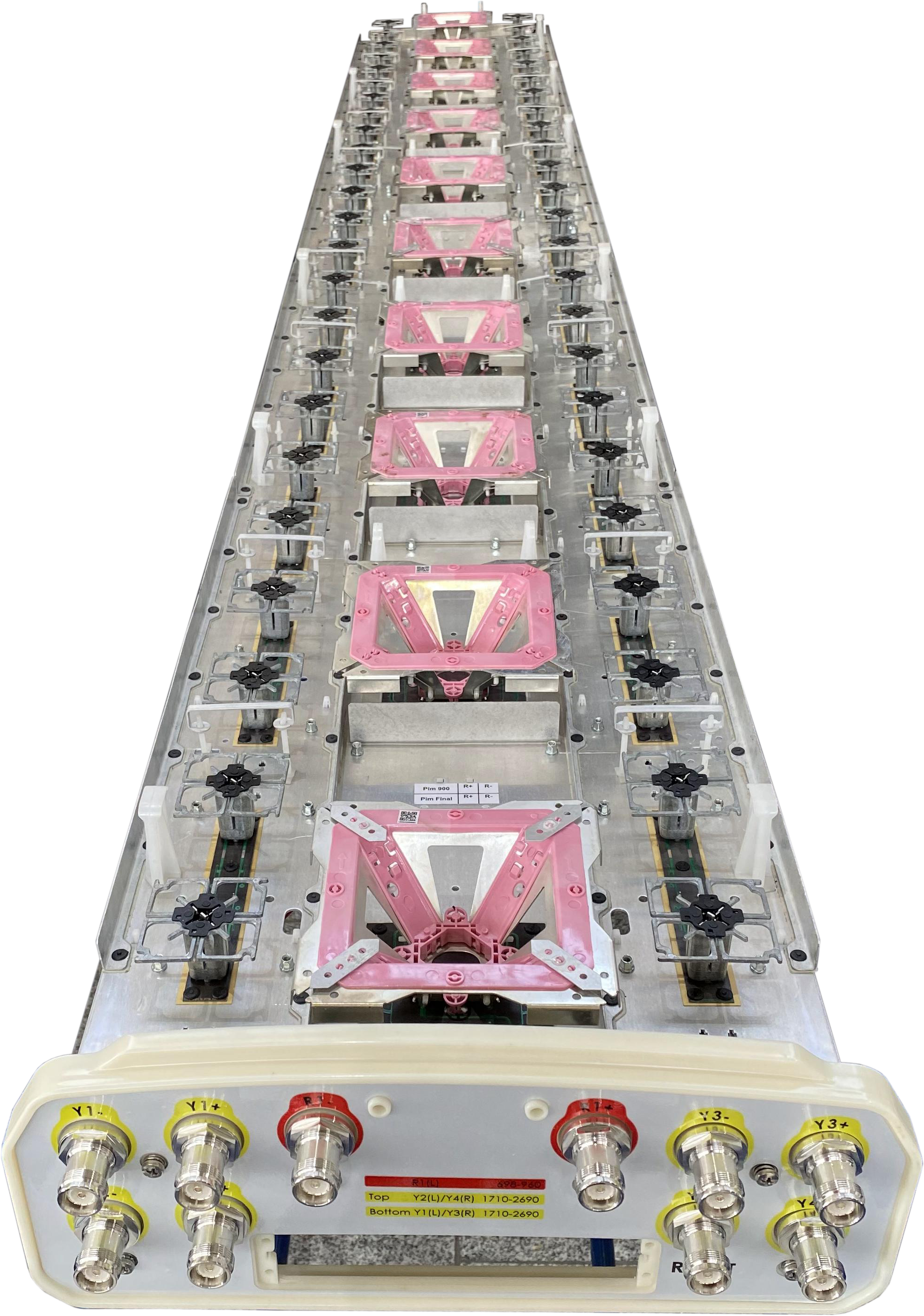

Elegant and domestic made design are the distinguishing features of FARAVID's antenna portfolio. FARAVID antennas are based on fully fledged engineering knowledge as well as decades of practical experience. The cellular antenna is designed to operate over two frequency bands namely 690-960MHz and 1695-2690MHz. Electrical Down tilts are customized and controlled by remote electrical tilt system (easy-RET). Fiberglass Random covers the internal antenna components to assure optimum performance concering stability, stiffness, UV resistance and weather resistance. The antenna is equipped with two fixing points and stainless steel brackets.
